GenScript SDS-PAGE快速轉漬儀

GenScript SDS-PAGE快速轉漬儀



產品說明

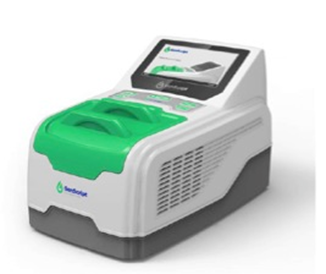

eBlot® L1 wet protein transfer system is a highly efficient western blotting transfer system that uses a novel technology (patent pending) developed by GenScript. eBlot® L1 combines the high reproducibility and efficiency of the traditional wet transfer with the speed and convenience of other fast transfer systems. The device allows efficient blot transfer of small, medium and large molecular weight proteins within 9-17 minutes.


產品特色
•    Comprehensive: Outstanding performance for small, medium and large proteins
•    Convenience: Simultaneously transfer two mini gels
•    Compatible: Highly compatible with different types of precast or homemade gels
•    Simple: Easy to assemble, one button operation and customizable programs available


實驗論證

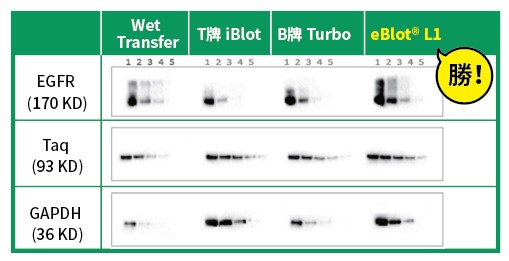

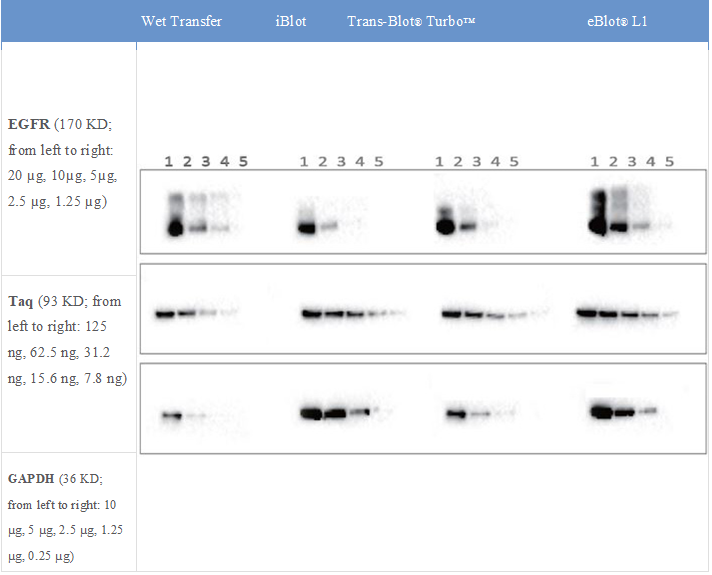

Comparative blotting efficiency with various transfer systems.

Three different proteins were transferred on to PVDF membranes using traditional wet transfer, iBlot, Trans-Blot, and GenScript's eBlot L1. The quantities of proteins loaded ranged from 1.25 µg- 20 µg for EGFR, 7.8 ng- 125 ng for Taq, and 0.6 µg- 10µg for GAPDH. For all three proteins, the eBlot® L1 offered superior transfer efficiency compared to other systems. With its high efficiency of transfer, protein concentrations as low as 7 ng for Taq (lane 5), and as high as 20 µg for EGFR(lane 1) could be clearly visualized.
